Product Catalog

Hardware for unmanned platforms.

Open-architecture EO/IR gimbals and companion ground-segment hardware.

Product Family

B-Series gimbals.

A common mechanical and control platform across sensor variants. Built for the mission.

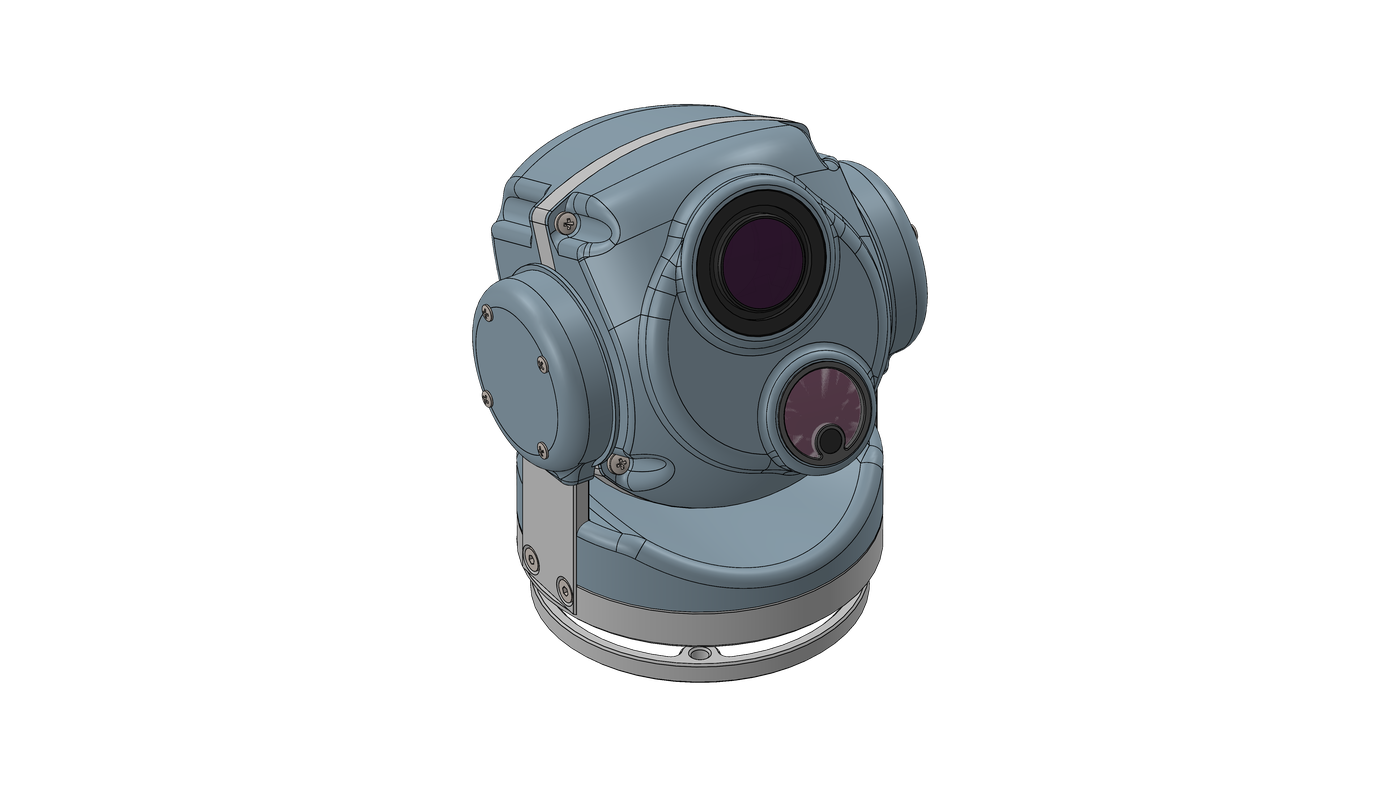

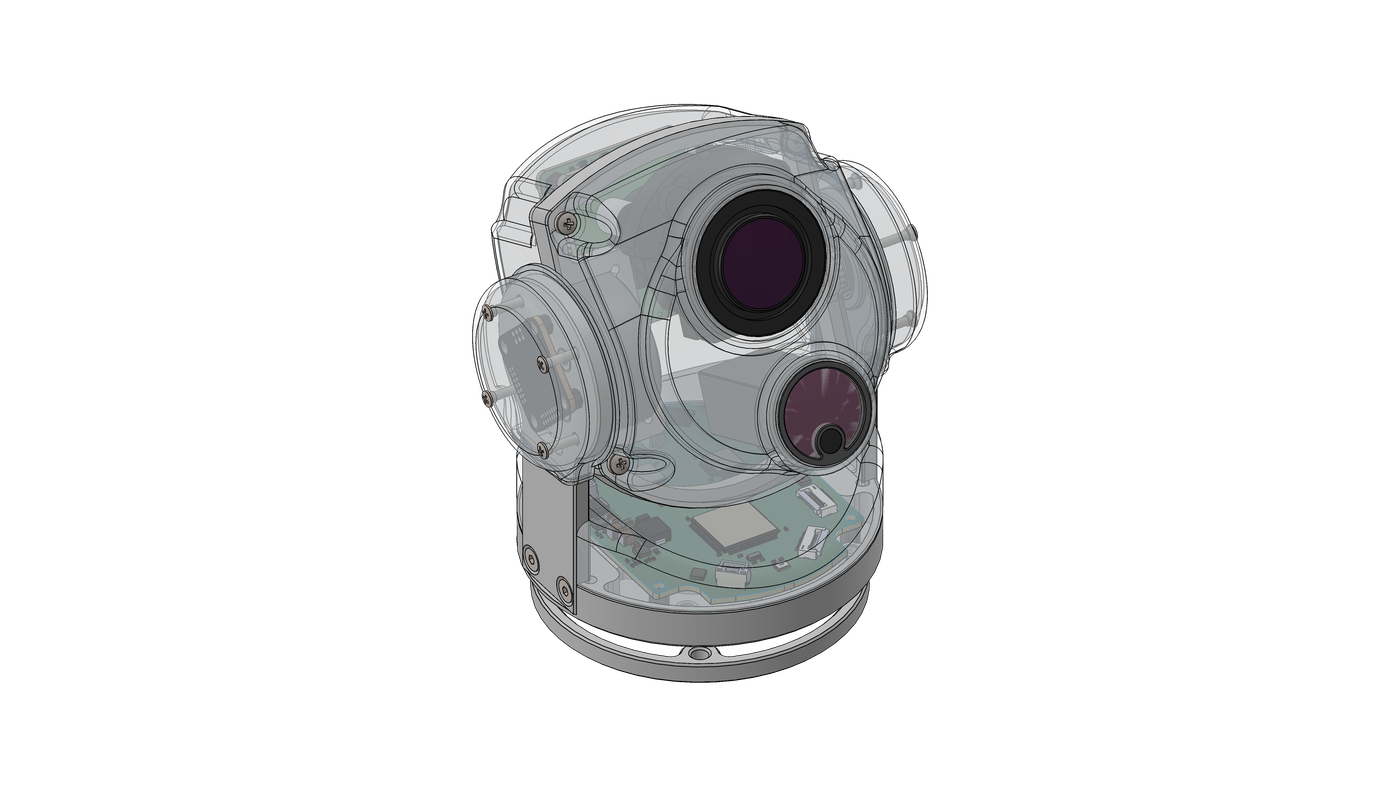

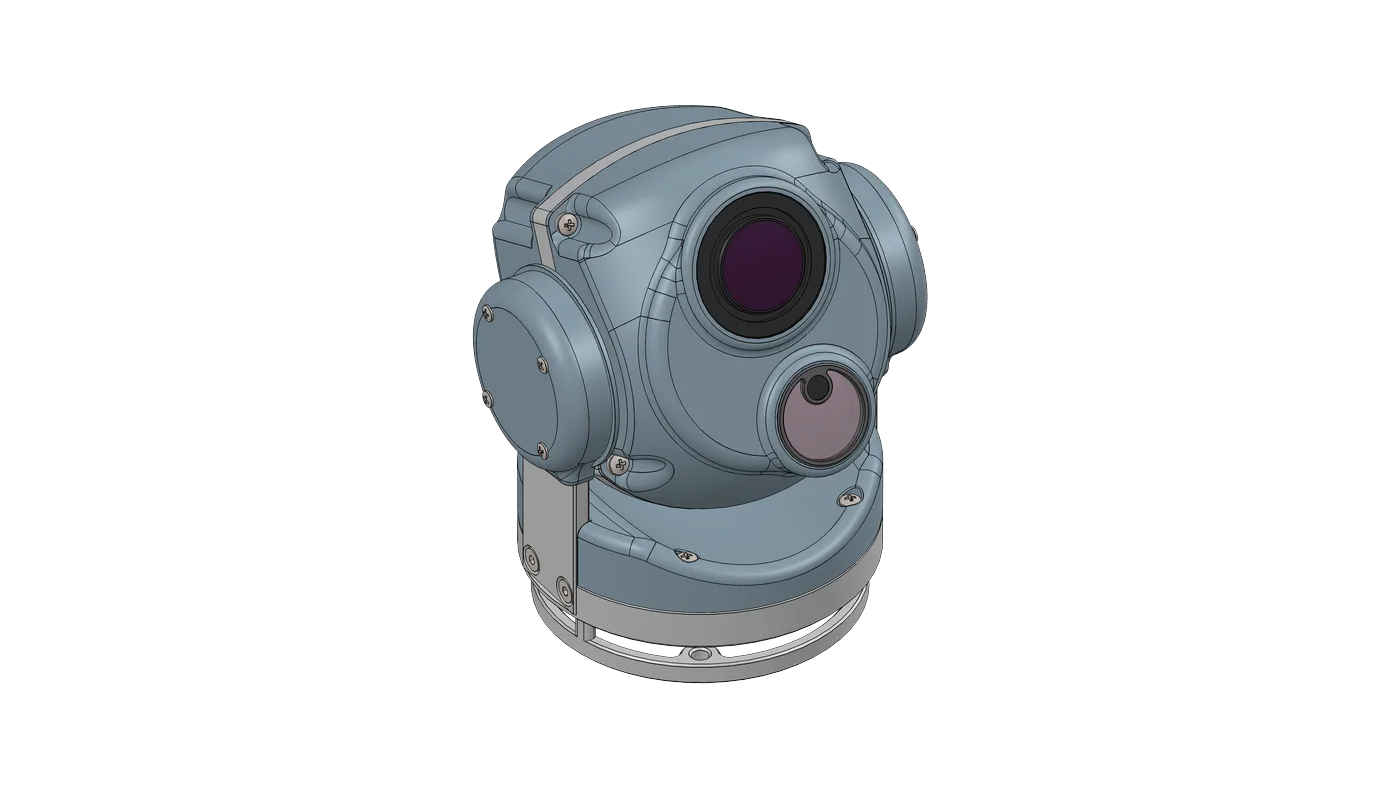

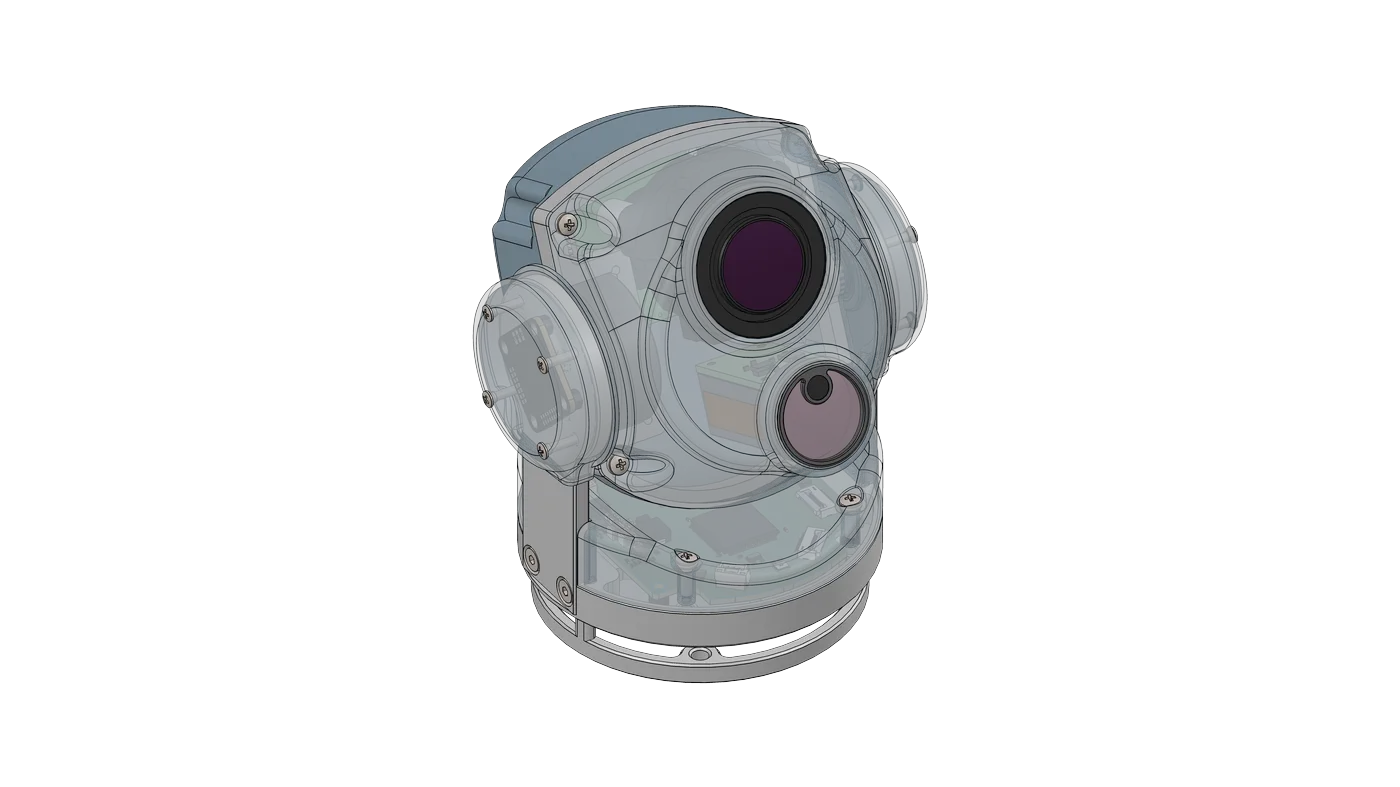

B-270 B-270 internals
In Development
2-axis~270 g85 × 115 mm

B-270

Stabilized 2-axis EO gimbal with 4K RGB sensor, 10× optical zoom, onboard target tracking and LiDAR rangefinder. MAVLink-native, integrates directly with PX4, ArduPilot and iNAV.

Specifications

  • Axes : 2-axis · Tilt −20° to +110° · Pan ±170°
  • Mass : ~270 g
  • Dimensions : ~85 × 115 mm
  • Edge AI : Embedded target detection & tracking
  • Stabilization : Mechanical 2-axis + electronic (EIS), OSD overlay
  • Onboard sensors : 2× ICM-42688 IMU · barometer · magnetometer · 21-bit absolute encoder
  • LiDAR rangefinder : 1200 m · 10 Hz · geo-positioning
  • Comms : MAVLink over UART or CAN-FD
  • EO : RGB 4K Sony STARVIS · 10× optical (5.6–56 mm), 20× hybrid · H.265/H.264 · Ethernet RTP/UDP · 1080p 30–60 fps
  • Processor : Rockchip RV1126-B (3 TOPS) optional RK3588 (6 TOPS) optional FPGA ISP + NPU accelerator

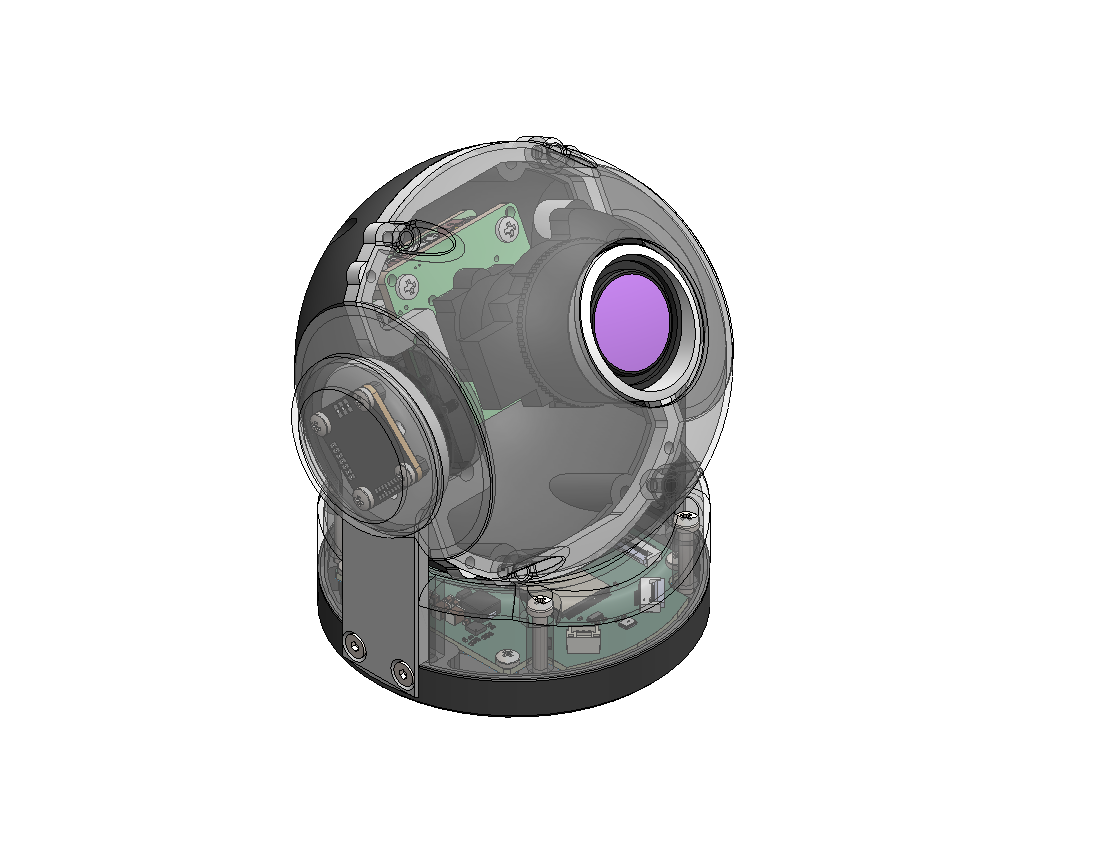

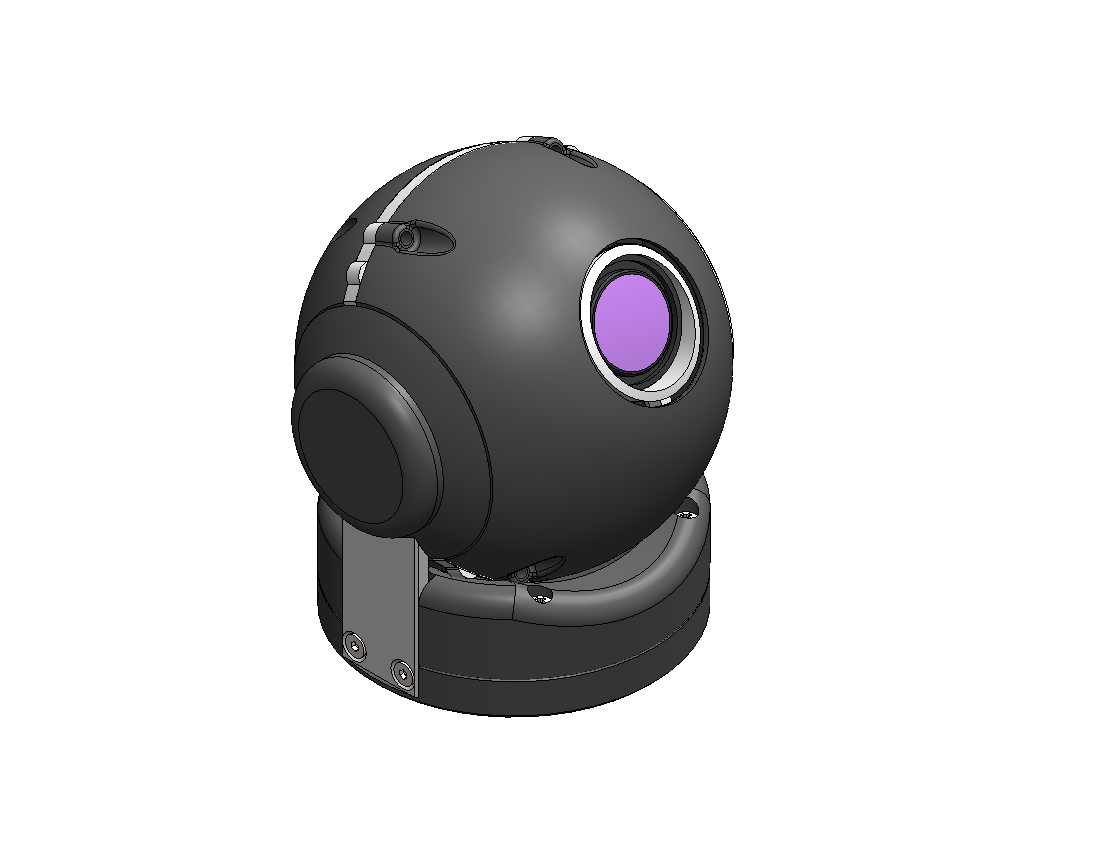

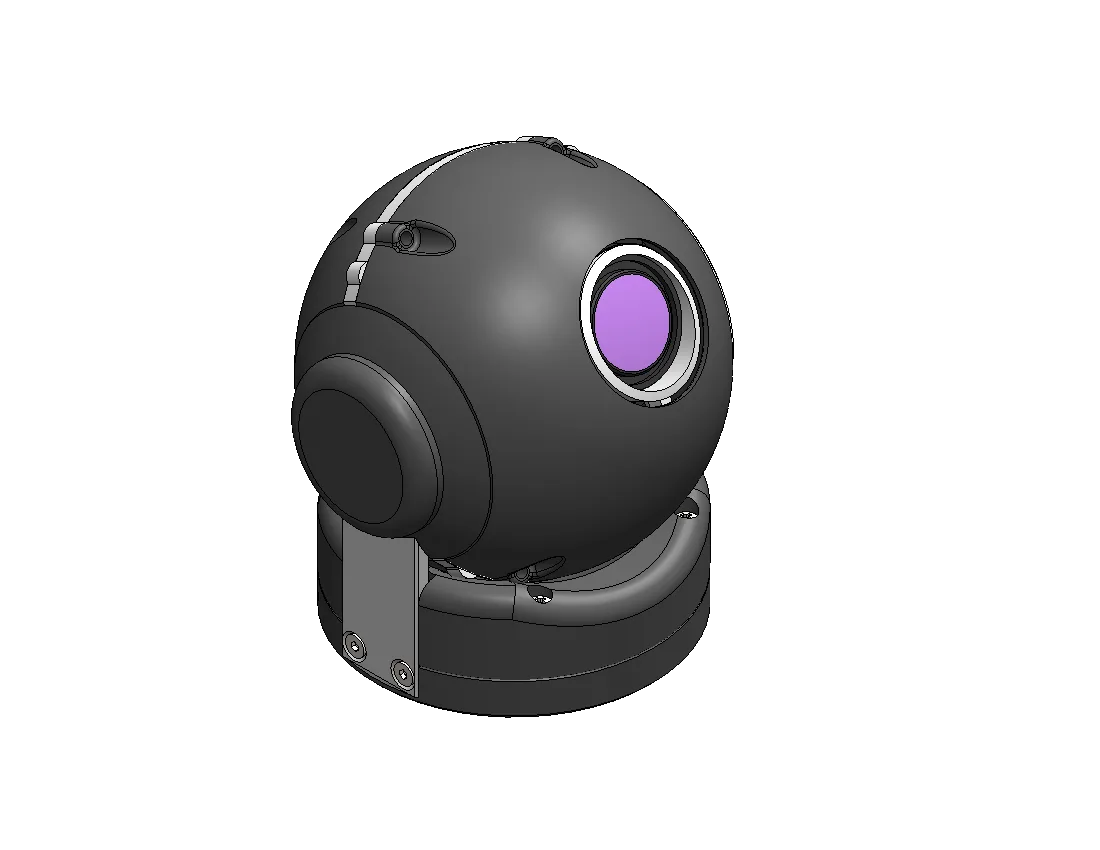

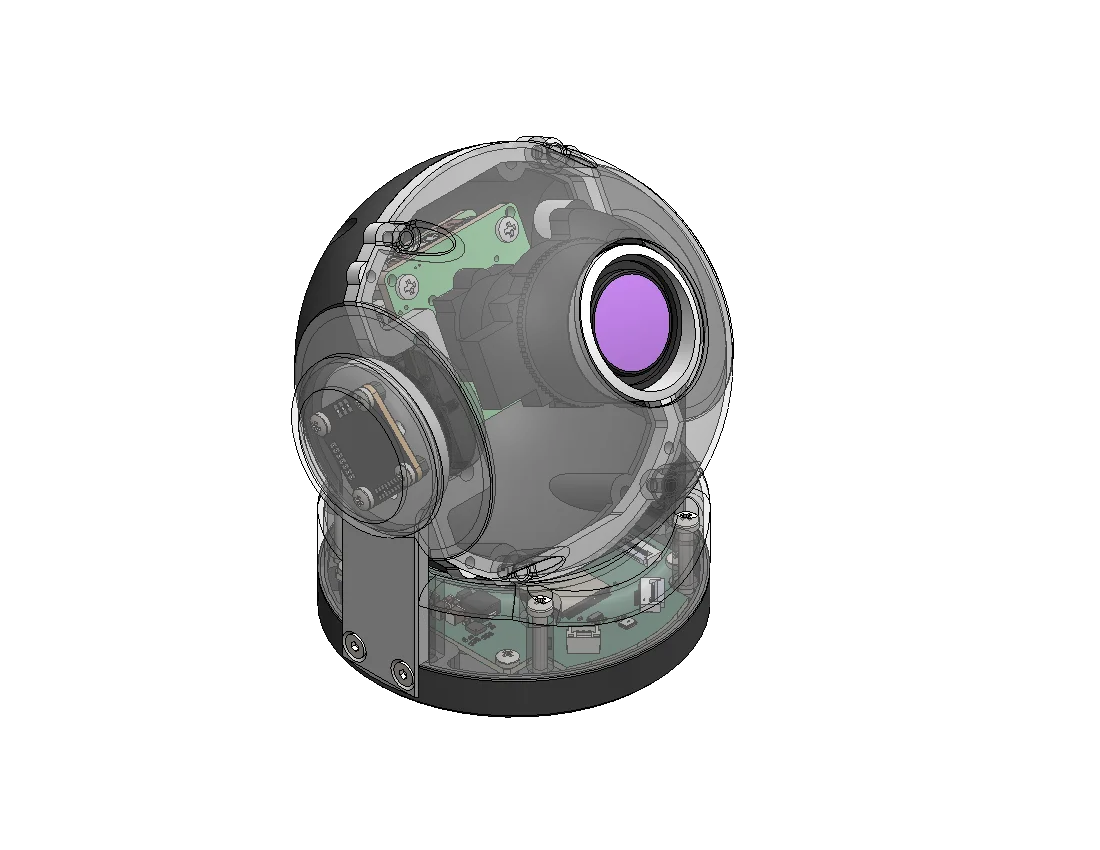

B-230 B-230 internals
In Development
2-axis~230 g75 × 90 mm

B-230

Compact 2-axis EO gimbal sharing the B-Series mechanical and control baseline. RGB-only. In a lighter and smaller envelope than the B-270. MAVLink-native, integrates directly with PX4, ArduPilot and iNAV.

Specifications

  • Axes : 2-axis · Tilt −20° to +110° · Pan ±170°
  • Mass : ~230 g
  • Dimensions : ~75 × 90 mm
  • Edge AI : Embedded target detection & tracking
  • Stabilization : Mechanical 2-axis + electronic (EIS), OSD overlay
  • Onboard sensors : 2× ICM-42688 IMU · barometer · magnetometer · 21-bit absolute encoder
  • EO : RGB 4K Sony STARVIS · 4.8–22 mm (~4.6× optical) · H.265/H.264 · Ethernet RTP/UDP · 1080p 30 fps
  • Processor : Rockchip RV1126-B (3 TOPS) optional FPGA ISP + NPU accelerator
  • Comms : MAVLink over UART or CAN-FD
B-330
Coming soon
2-axisRGB + ThermalLiDAR

B-330

Dual-sensor 2-axis EO/IR gimbal — RGB + thermal — with onboard target tracking and LiDAR rangefinder. Builds on the B-270 platform for day/night ISR and inspection workflows. MAVLink-native, integrates directly with PX4, ArduPilot and iNAV.

Specifications

  • Axes : 2-axis
  • Sensors : RGB + Thermal (LWIR)
  • Rangefinder : LiDAR

Ground Segment

Antenna trackers & pods.

Companion ground-segment hardware for the B-Series. Portable trackers and integration pods that pair directly with the gimbal command set.

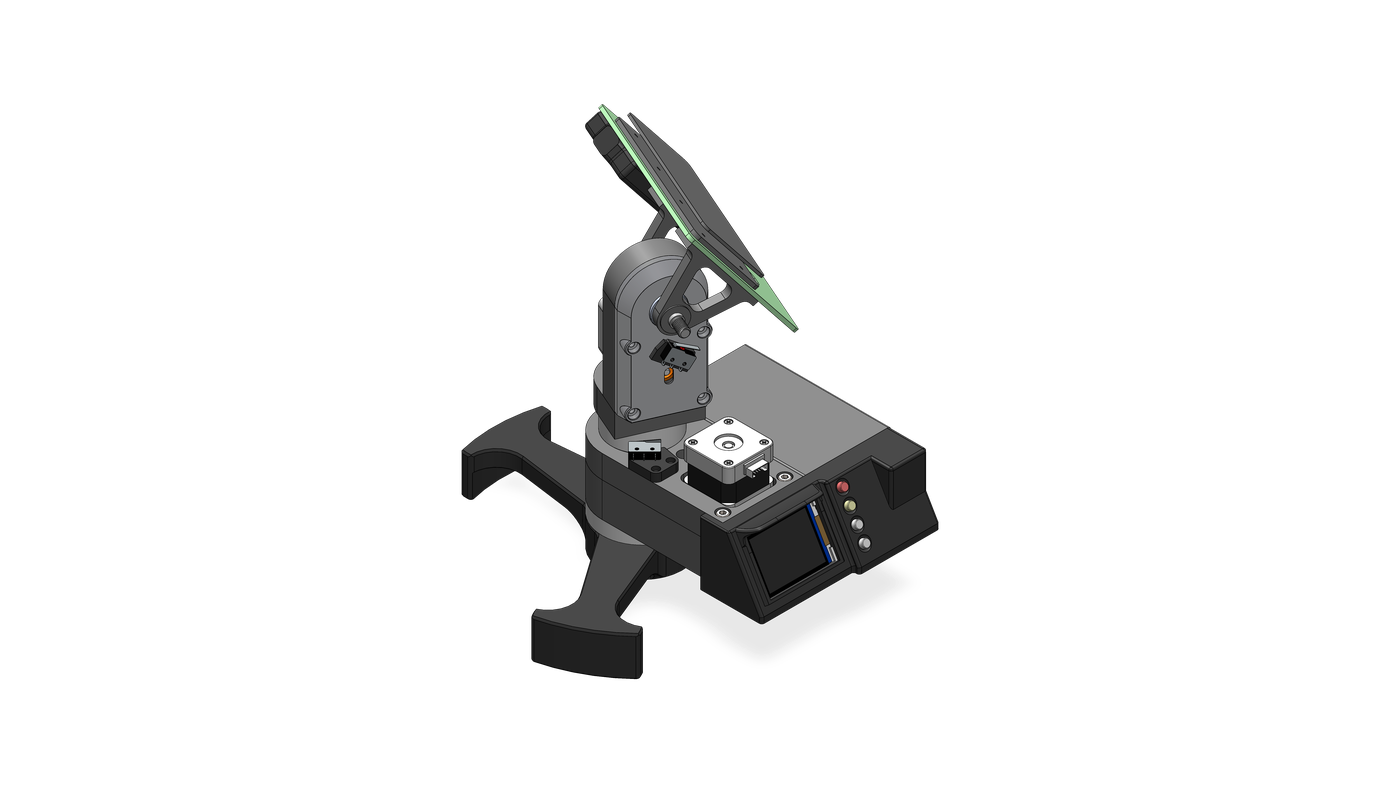

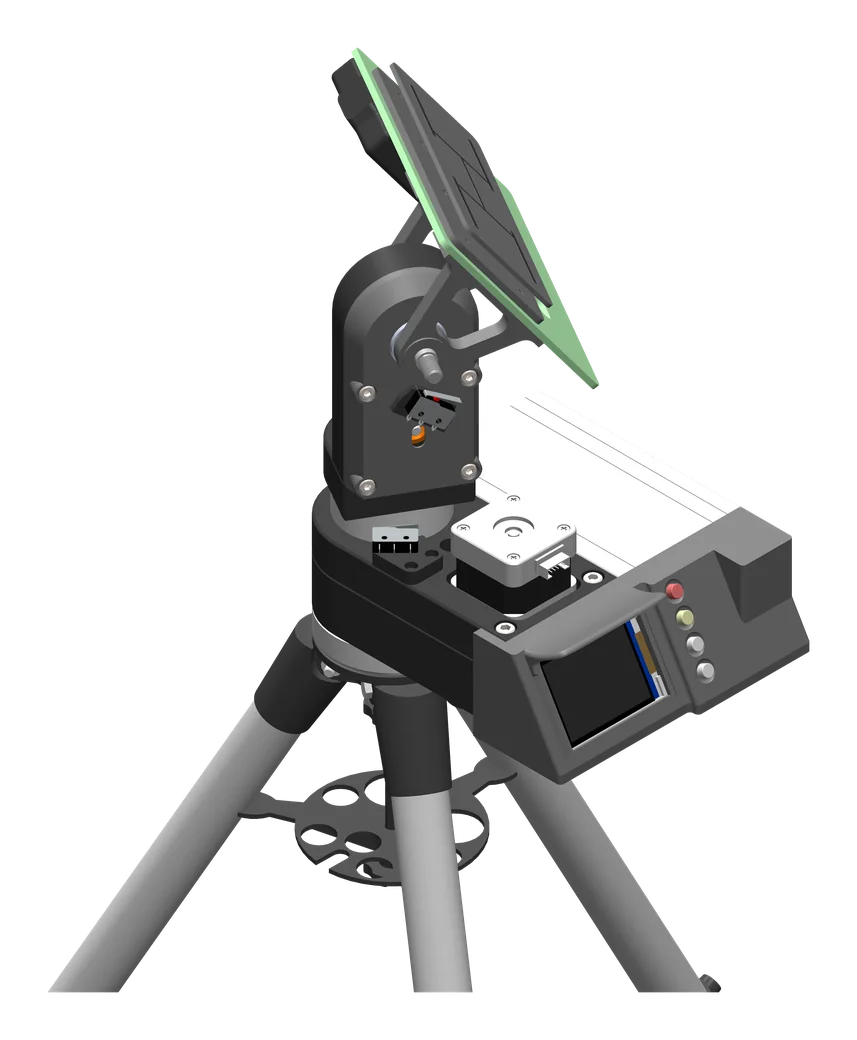

AT-1 AT-1 internals
In Development
Stabilized 2-axis~1.7 kgMAVLink

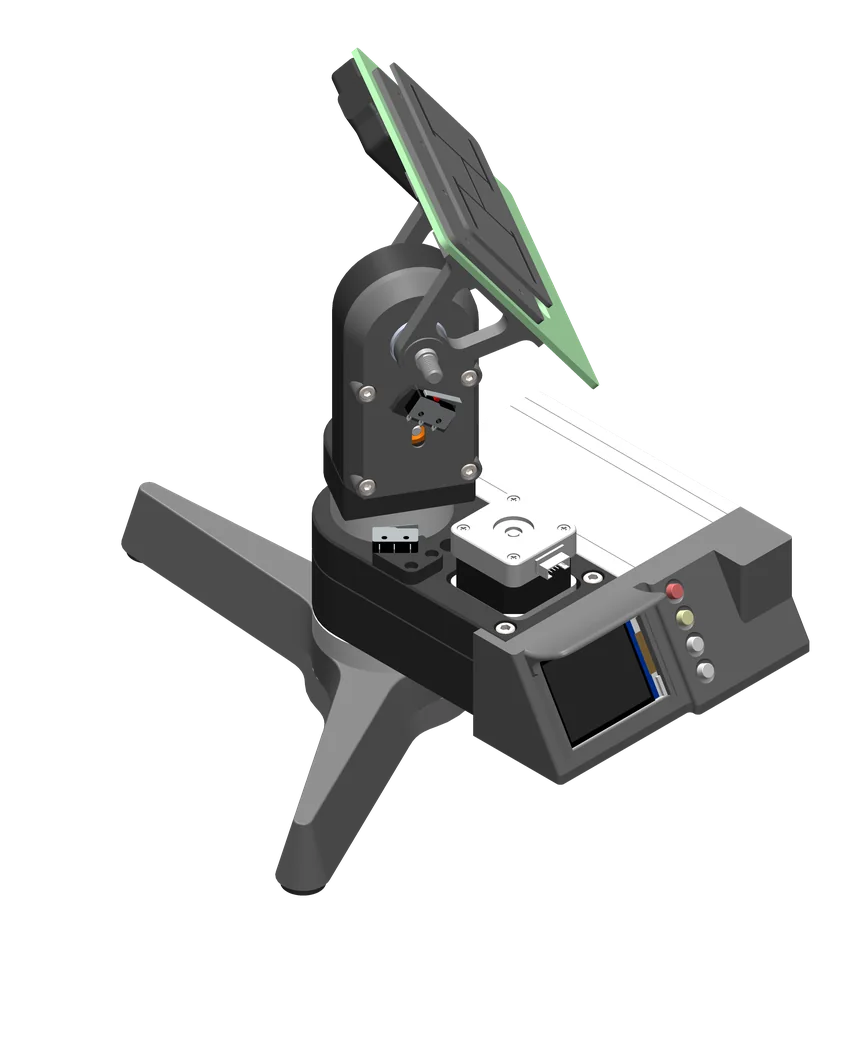

AT-1

Stabilized 2-axis antenna tracker with integrated display and operator controls. Designed for ground-station use alongside the B-Series.

Specifications

  • Axes : 2-axis (azimuth / elevation), stabilized
  • Azimuth : ±180° · up to 600°/s
  • Elevation : −20° to +190° · up to 800°/s
  • Mass : ~1.7 kg
  • Operator UI : Onboard display + control buttons
  • Comms : MAVLink over UART or CAN-FD
  • Mounting : 1/4-20 tripod thread or integrated tripod base
